Reactive Ion Etching (RIE) System

Description

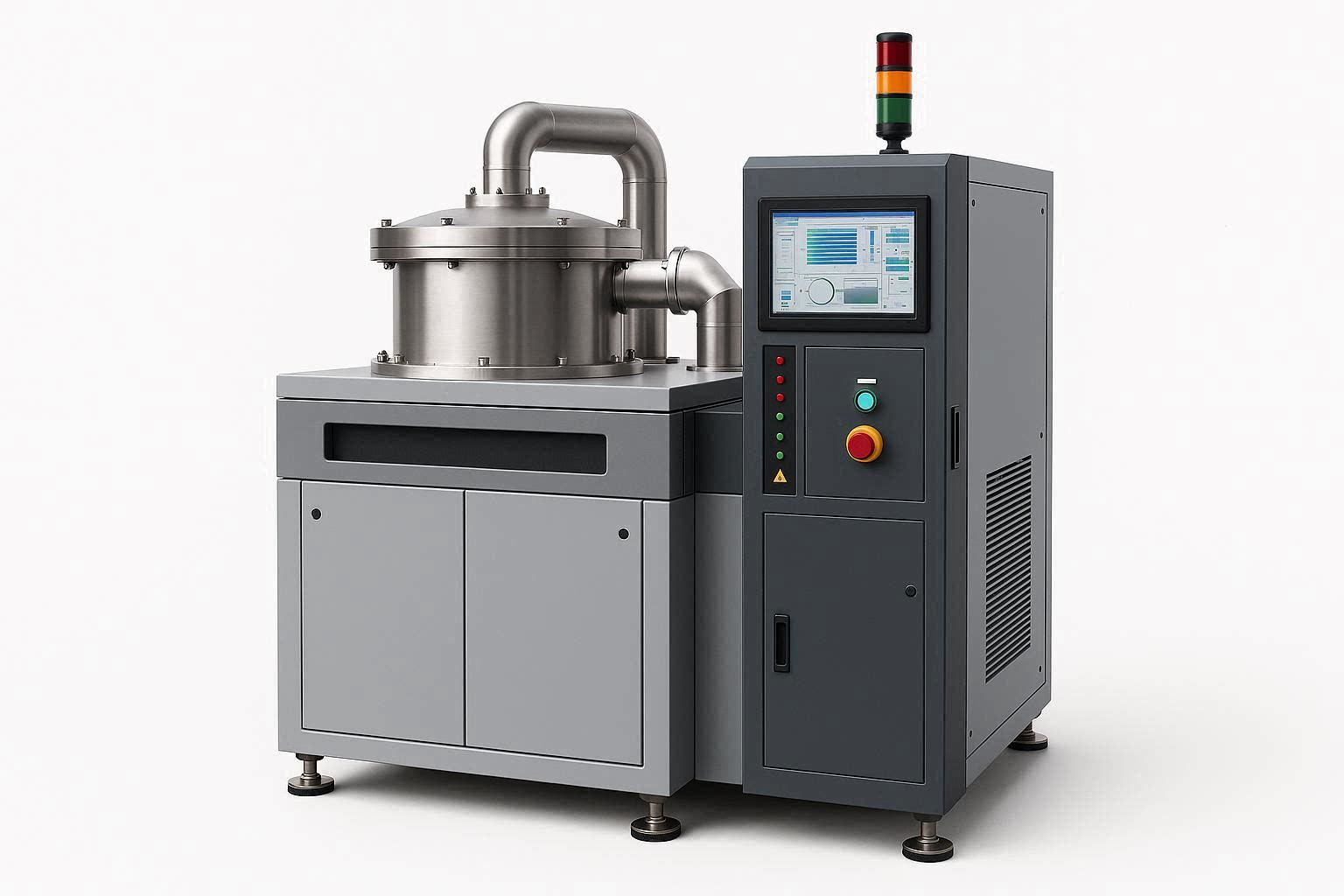

Reactive Ion Etching (RIE) System - Semiconductor Equipment

A Reactive Ion Etching (RIE) System is a sophisticated plasma-based etching technology used in semiconductor fabrication, microelectronics, and nanotechnology. It enables highly anisotropic, precise removal of materials from substrates, allowing for the creation of intricate micro- and nanoscale structures.

What is a Reactive Ion Etching (RIE) System?

Reactive Ion Etching System employs chemically reactive plasma to etch specific materials with high precision. In this process, reactive ions generated in a plasma are directed toward the substrate, where they chemically react with the material surface to remove it in a controlled manner. The system's design allows for anisotropic etching, meaning it can etch deep into the material while maintaining vertical sidewalls.

How it works:

- The system creates a plasma from reactive gases (e.g., fluorocarbons, chlorine, oxygen).
- A radio frequency (RF) power source energizes the plasma, producing reactive ions.
- These ions are accelerated toward the substrate surface, where they chemically interact with the material.
- The etching process can be finely tuned by adjusting parameters like gas flow, pressure, power, and temperature.

Advantages of Reactive Ion Etching:

- High Selectivity: Precise material removal without damaging surrounding areas.
- Anisotropic Etching: Vertical sidewalls for accurate pattern transfer.
- Process Repeatability: Consistent results for high-volume production.
- Compatibility: Works with a wide range of materials and substrates.

Key Features of Reactive Ion Etching Systems:

- High Precision & Anisotropy: Vertical sidewalls ideal for microfabrication.
- Material Compatibility: Suitable for etching silicon, silicon dioxide, metals, polymers, and more.
- Fine Control: Adjustable parameters for precise etch depths and profiles.
- Clean Process: Generates minimal physical damage, preserving device integrity.
- Versatile Gases: Compatible with various reactive gases for different materials.

Common Applications of Reactive Ion Etching Systems:

- Semiconductor Manufacturing: Pattern transfer, etching of microchips and integrated circuits.
- MEMS Fabrication: Creating micro-electromechanical systems with complex geometries.
- Nanotechnology: Patterning nanoscale features.
- Optoelectronics: Fabrication of photonic devices and waveguides.
- Material Research: Developing new materials and device prototypes.

High-Throughput Reactive Ion Etching (RIE) Systems | SEMI-Compliant Wafer Etching Solutions

Explore advanced Reactive Ion Etching (RIE) systems for semiconductor fabrication. High-precision plasma etching for 100mm to 300mm wafers with SEMI S2/S8 compliance and SECS/GEM integration.

Key Value Propositions

- Nanometer-Scale Precision: Achieve exceptional anisotropic etch profiles with controlled ion bombardment energy for advanced node shrinking.
- Substrate Versatility: Fully compatible with Si, SiO2, Si3N4, poly-silicon, and III-V compound semiconductors.
- SEMI Standard Compliance: Engineered to meet SEMI S2/S8 safety and ergonomic standards, ensuring seamless global fab integration.
- Maximum Up-time: Features high MTBF components and automated chamber cleaning cycles to minimize maintenance-related downtime.
- Cleanroom Integration: Compact footprint designed for ISO Class 1 environments with minimized particle generation and contamination control.

Technical Deep-Dive

The core of our RIE technology lies in the asymmetric electrode configuration, where the substrate is placed on the smaller, RF-powered electrode to induce a high DC self-bias. This mechanism accelerates ions perpendicularly toward the wafer surface, facilitating high-fidelity pattern transfer. Our systems utilize UHP (Ultra-High Purity) gas delivery systems and high-vacuum turbo pumps to maintain a pristine process environment. For 200mm and 300mm configurations, we utilize electrostatic chucking (ESC) with helium backside cooling to ensure precise thermal budget management during high-power etch cycles.

Buyer’s Guide / Decision Logic

When selecting an RIE system, process engineers should evaluate the following parameters:
- Material Chemistry: Does your process require corrosive gases (Cl2, BCl3)? Ensure the gas box and pumping stack are configured for corrosive service.
- Selectivity Requirements: Determine the necessary ratio between the etch rate of the target layer vs. the mask or stop-layer.
- Automation Level: Choose between manual loading for R&D or EFEM/Robotic handling for HVM to reduce contamination.
- Aspect Ratio: For deep trenches, consider our DRIE (Bosch Process) enabled modules.

Technical FAQ

Q: Is the system SECS/GEM compliant?
A: Yes, all production-grade models support full SECS/GEM interface for factory automation and data collection.

Q: What is the typical MTBF for the RF generator and turbo pumps?
A: Our systems are spec’d for an MTBF of >5,000 hours, supported by a global spare parts network.

Q: Can the tool be reconfigured for different wafer sizes?
A: Yes, the ProSeries and UltraFab models offer field-retrofittable kits to switch between 150mm, 200mm, and 300mm formats.

Interactive Selection Table: Reactive Ion Etching (RIE) System Configurations

This table provides a high-level comparison of our primary Reactive Ion Etching platforms to help you identify the optimal tool for your specific throughput and process requirements.

Model No. Throughput (WPH) Process Uniformity Footprint (m²) Primary Application
RIE-100 LabReady 1–5 (Batch/Manual) < ±3% (100mm/150mm) 0.85 University R&D, MEMS prototyping, and Failure Analysis.
RIE-300 ProSeries 15–25 (Single Wafer) < ±2% (200mm) 1.40 Pilot line production, GaAs/GaN etching, and Power Semi.
RIE-500 UltraFab 45–60 (Cluster Tool) < ±1.5% (300mm) 2.10 (Chamber only) High-volume CMOS fabrication and advanced 3D NAND structures.
RIE-X Extreme Custom/Application Dep. < ±1.0% 1.85 Deep Silicon Etching (DRIE) and high-aspect-ratio (HAR) features.

Enhance your microfabrication capabilities with our advanced Reactive Ion Etching (RIE) System. Contact us today for more information or to request a customized solution!
